Exakta and Exa lens-mounts
Exakta lens-mounts
1936-1970 -
Exa lens-mounts 1950-1985
by courtesy
of Klaus Wichmann the author of the books: VON DER KINE-EXAKTA BIS ZUR ELBAFLEX
- EXA
Die preiswerte Kleinbildreflex - Eine historische
Kameraserie wird vorgestellt
edited by LINDEMANNS VERLAG
Nadlerstrasse 10, 70173 Stuttgard

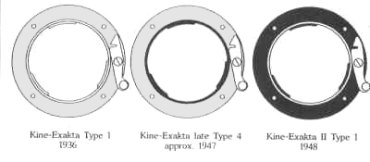

Kine
Exakta Type 1
The prime lens-mount
*******
Kine Exakta Type 4
After WW II brass was limited, from this reason the
lens-mount
was made from aluminium, later the arresting lever got an other shape
*******
Kine Exakta II
Black enamel

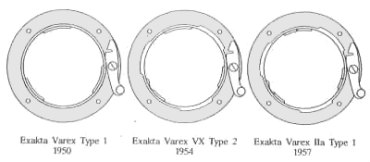

Exakta Varex
Brass again
*******
Exakta Varex II Type 2
From Type 2 with additional outside bayonet flangesand
a cut off
at one of the inner bayonet flanges. The reason was to prevent dark
edges
by using telephoto lenses, Ihagee created the outside bayonet flanges
*******
Exakta Varex IIa
Like above, but with slots at the inner bayonet flanges

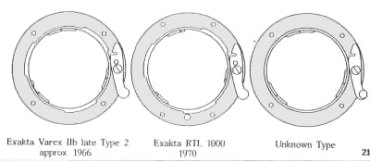

Exakta
Varex IIb Type 2
Approximatively 1966 the arresting lever got an other
simple shape
*******
Exakta RTL 1000
For the Exakta RTL 1000 with an additional hole for the
inner diaphragm shutter release. The inner bayonet flanges were
shortened
*******
Unknown Type
An unknown Type from my spare parts

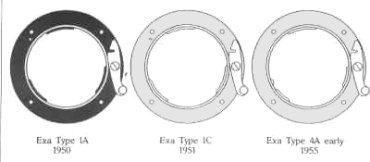

Exa Type 1A
The prime Exa lens-mount, like Kine Exakta, but with a
pinhole on the left top
*******
Exa Type 1C
Like Exakta Varex but with a pinhole on the left top
*******
Exa Type 4 early
Like Exakta Varex Type 2 but without outside bayonet
flanges

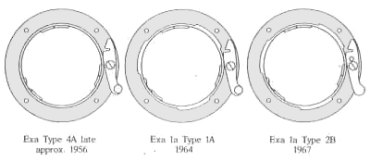

Exa Type
4A late
Like Exakta Varex IIa but without outside bayonet
flanges
*******
Exa Ia
Like Exakta Varex IIa with outside bayonet flanges
*******
Exa Ia Type 2B early
Like Exakta Varex Iib Type 2 with outside bayonet
flanges

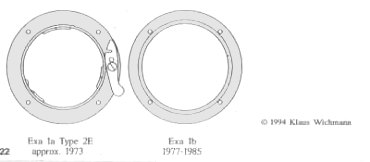

Exa Ia Type 2E
Like above but without outside bayonet flanges
*******
Exa Ib
M42 screw mount
*******
